G-Systems digital fan controller for climate

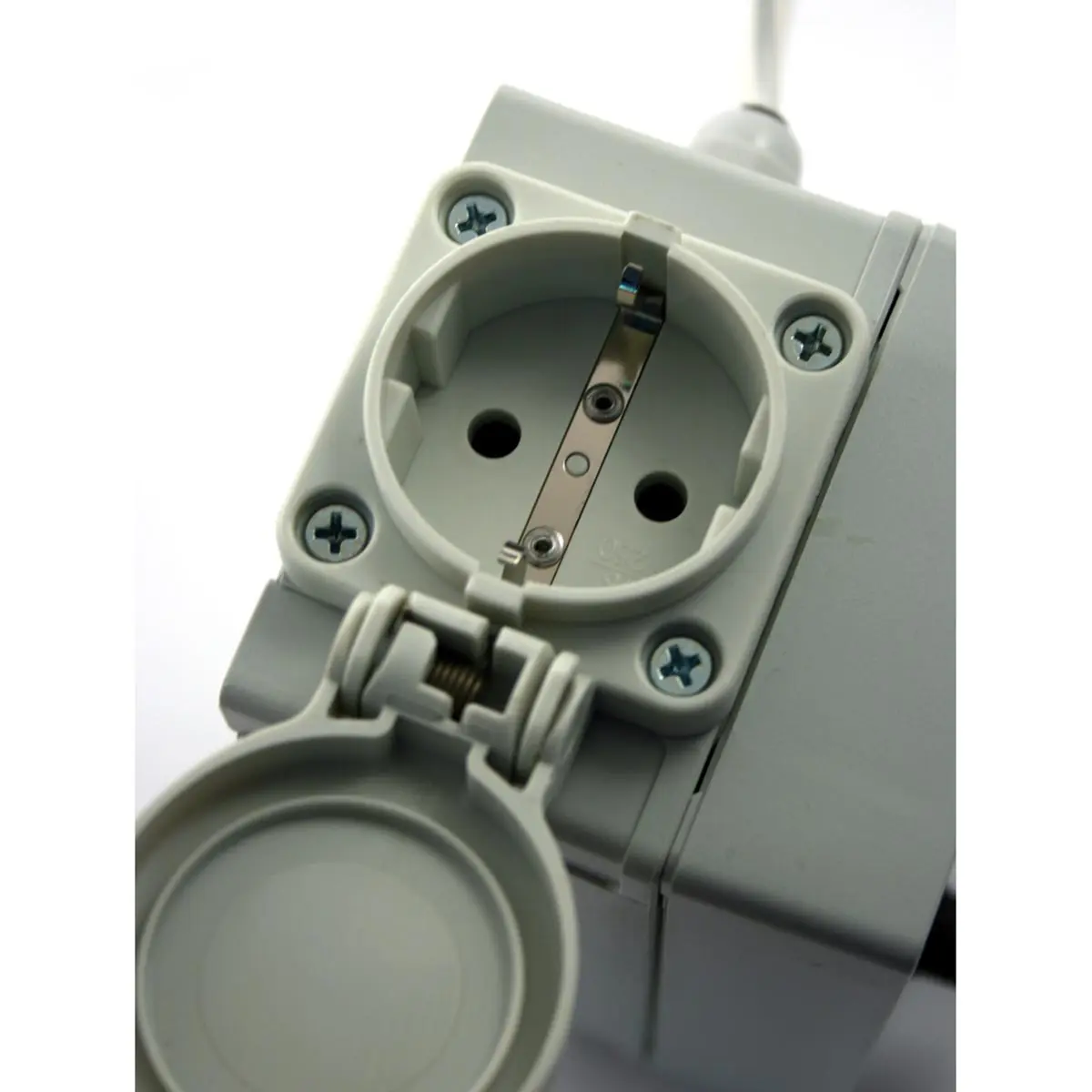

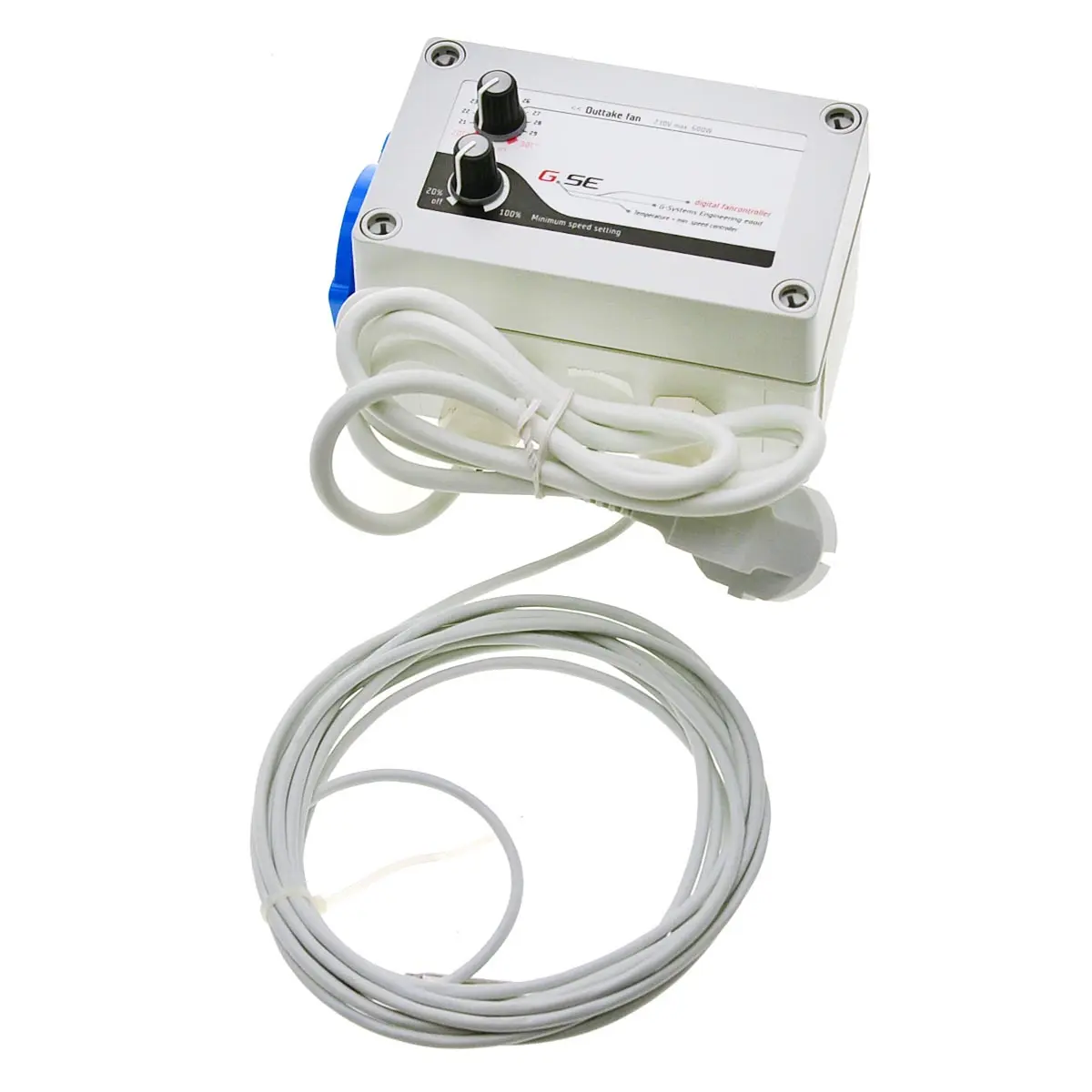

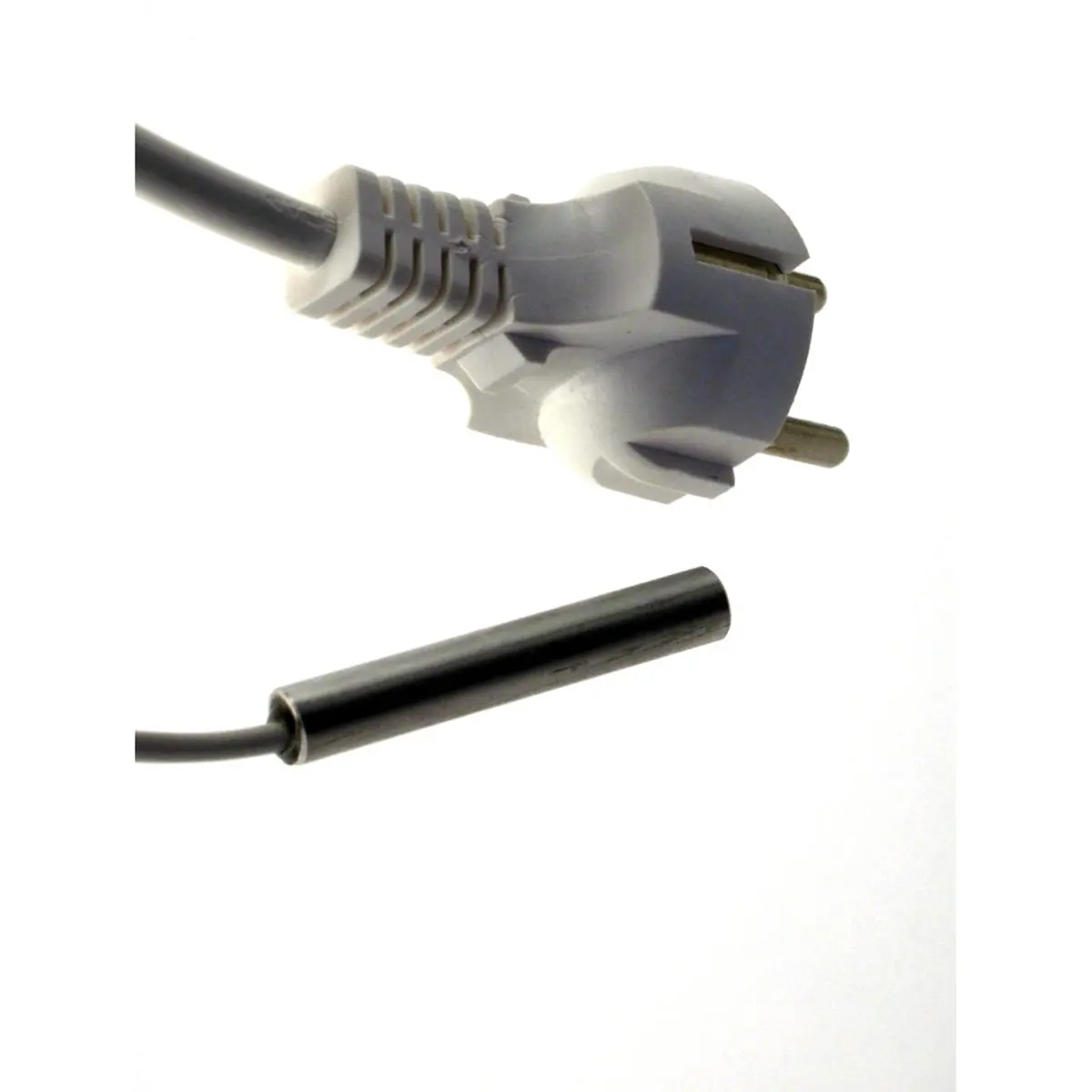

Instruction: Plug the exhaust air fan into the left plug signed with FAN1 and the supplier air fan into the right plug signed with FAN2. Install the temperature probe which comes on a 4m long cable to a place where you want to measure the temperature. Be careful not to place the probe close to a hot or light source to obtain a precise measure. Should the temperature cable be too short, it can be elongated up to 50 metres. Pay attention to first disconnect the power cable. Wrong connections or a short circuit destroys sensitive processor parts!

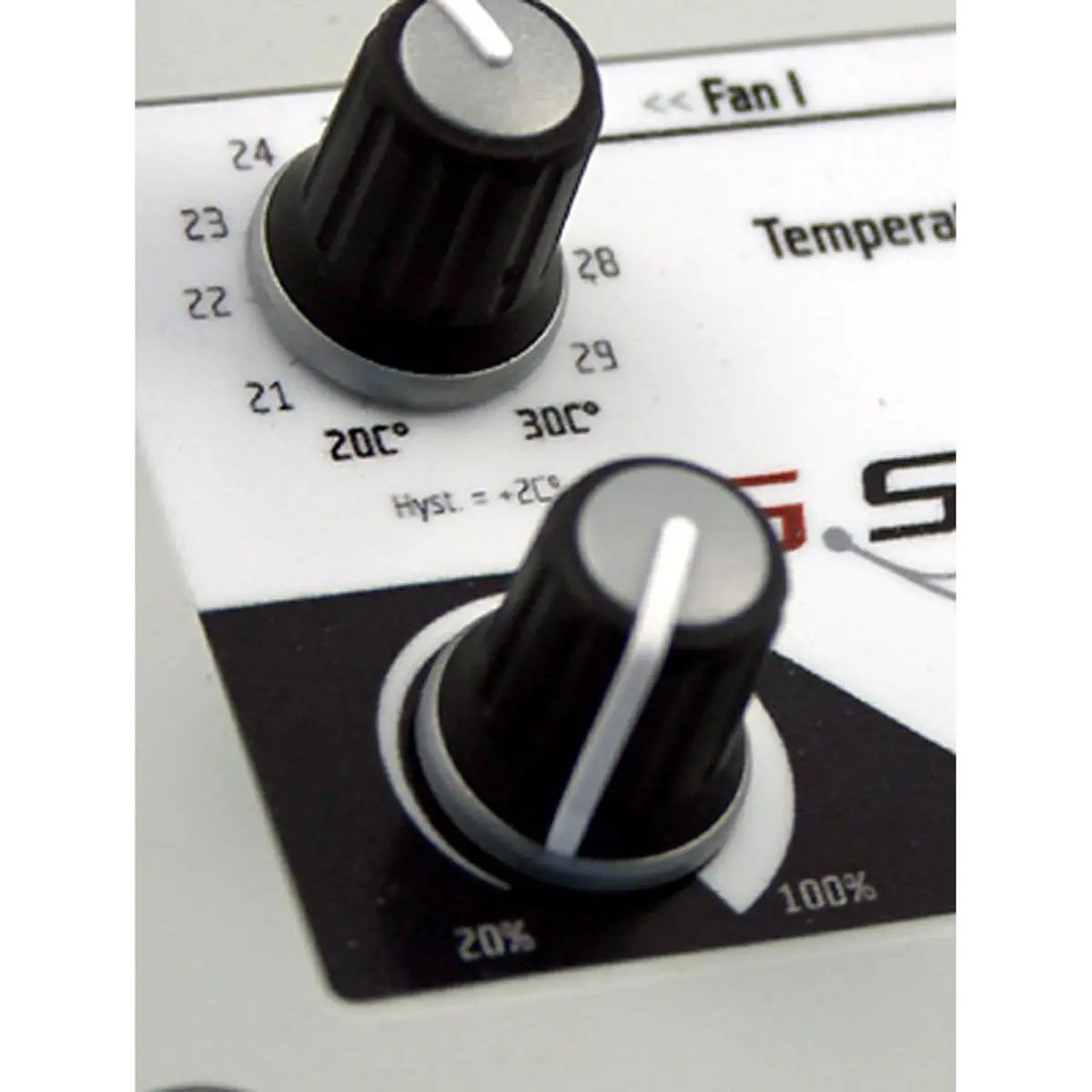

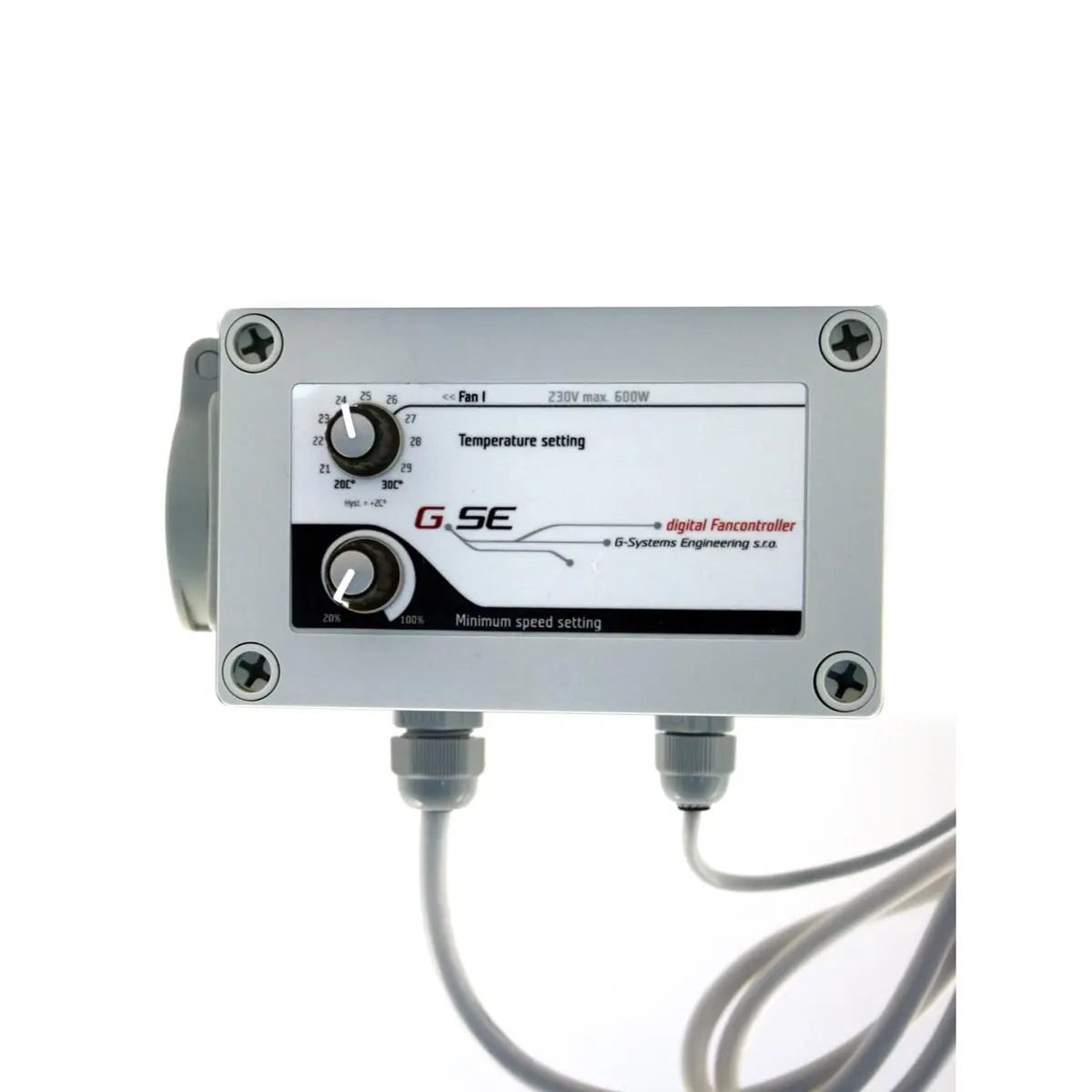

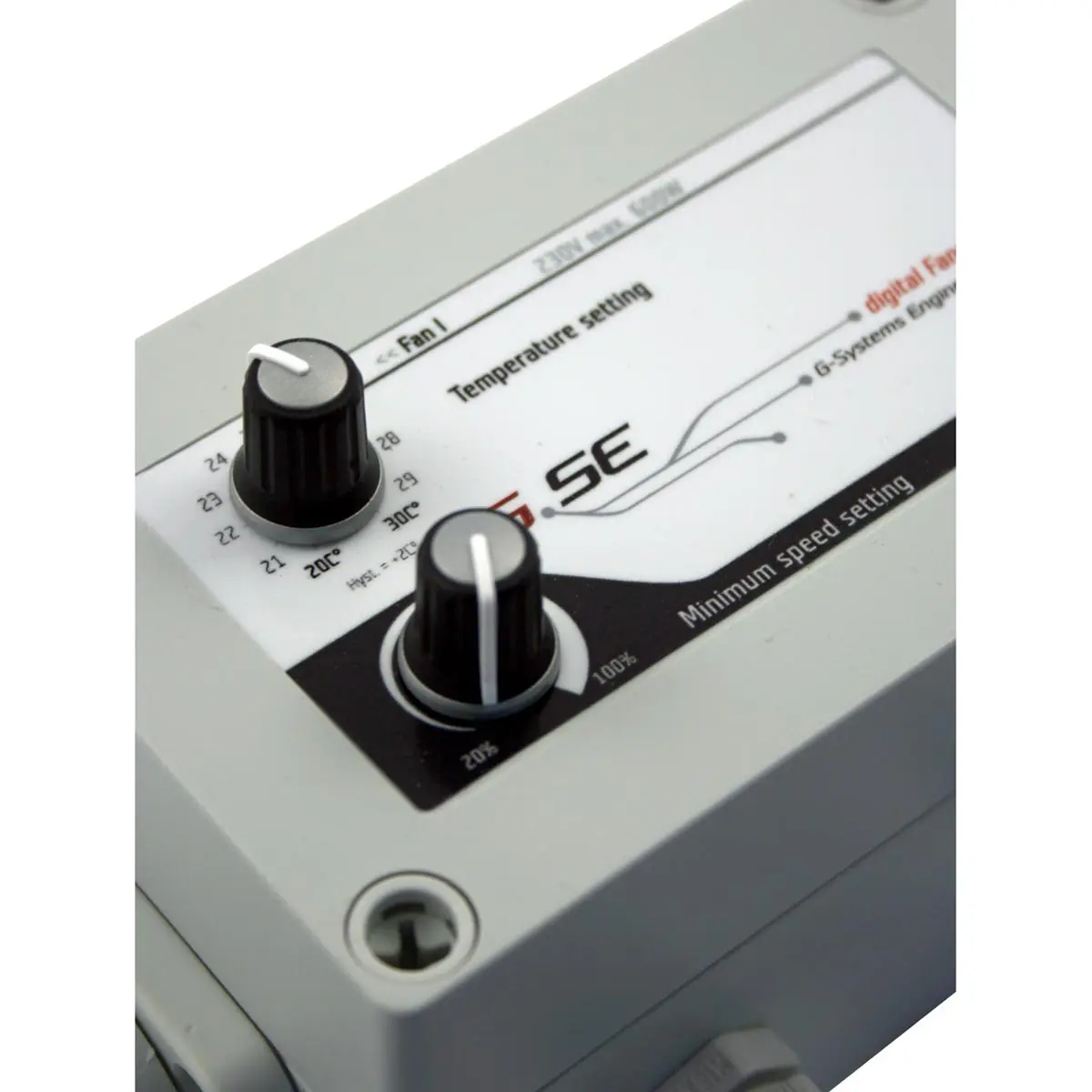

Now plug the power cagble into a common 10A or 13A socket. The exhaust FAN1 should now run at 20% to obtain an low-pressure. Adjust the temperature with the upper knob. Should the emasured temperature exceed your set temperature by +2° the ventilator runs at its maximum capacity. The second knob you adjust the low pressure % speed reduce of the supply FAN2 to run between 100% and 50% behind FAN1. FAN2 automatically switches off below the minimum speed of 20% to prevent fan noise and keep the room under pressure. This digital fan controller is perfectly suitable for e.g. a Homebox. Size and Technical Data:
- Casing: BxHxT = 130x80x70mm
- Fan Controller: BxHxT = 145x100x90mm
- Suitable for: 2x600W / TRIAC 2x16A
- Volt: 230V / 50Hz
- Digital Sensor: 5V measures temperatures from -55C to +125C (-67F to +257F)
- 0.5C Accuracy: -10c to +85C
- Safety Class: IP54
| Brand: | G-Systems |
|---|---|
| Color: | White |
| Material: | Plastic |
